Magnetic Polishing Machine – Machines with Fixed Speed
Magnetic Polishing Machine – Machines with Fixed Speed
Machine With Fixed Speed
APPLICATION: Jewellery Polishing, Small Component Polishing, Metal Finishing, Steel Needle Polishing
FABRICATION:
HEAVY DUTY
WITH FORWARD & REVERSE ROTATION, SPEED CONTROL

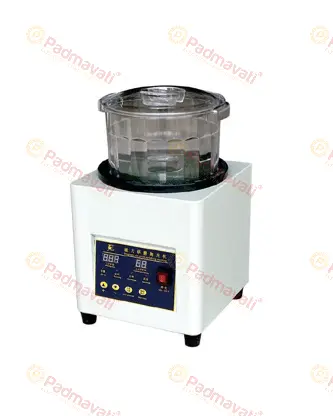

MODELS: 600 GM Model, 1000 GM Model, 2000 GM Model, 3000 GM Model
HOW its WORKS: Magnetic Pin Polishing Mechanism, Steel Needle Selection Guide
| Specifications | PM-MG/600G-F | PCPL-IMG/1000G-F | PCPL-IMG/2000G-F | PCPL-IMG/3000G-F |
|---|---|---|---|---|
| Voltage | 220 V | 220 V | 220 V | 220 V |
| Frequency | 50 HZ | 50 HZ | 50 HZ | 50 HZ |
| Motor Power | 0.35 HP | 0.45 HP | 0.75 HP | 1 HP |
| Speed | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM |
| Steel Needle Dosage | 0–200 GM | 0–350 GM | 0–600 GM | 0–800 GM |
| Material Weight | 600 GM | 1 KG | 2 KG | 3 KG |
| Rotation | FW / RW | FW / RW | FW / RW | FW / RW |
| Machine Weight | 13 KG | 20 KG | 35 KG | 40 KG |
| Machine Size (L × W × H) mm | 250 × 250 × 280 | 290 × 290 × 320 | 330 × 330 × 380 | 410 × 410 × 430 |
| Barrel Size (D × H) mm | 200 × 125 PC | 230 × 150 PC | 250 × 165 PC | 350 × 185 PC |

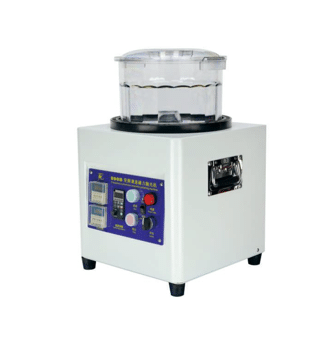

Magnetic Polishing Machine – Machines with Variable Speed Control
Magnetic Polishing Machine – Machines with Variable Speed Control
Variable Speed Control
APPLICATION: Jewellery Polishing, Small Component Polishing, Metal Finishing, Steel Needle Polishing
FABRICATION:
HEAVY DUTY
WITH FORWARD & REVERSE ROTATION, VARIABLE SPEED CONTROL

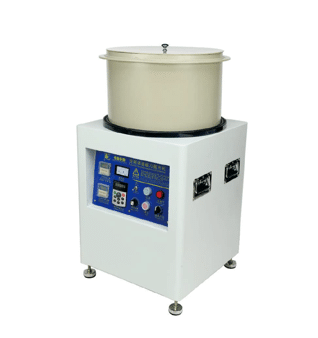

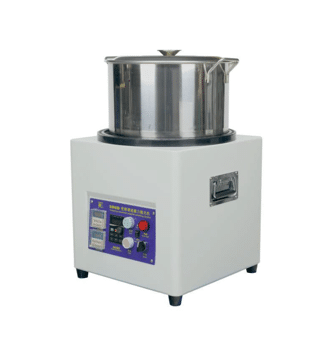

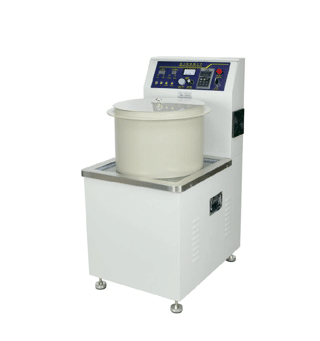

MODELS: PCPL-IMG/2.5K-V, PCPL-IMG/5K-V, PCPL-IMG/8K-V, PCPL-IMG/10K-V
HOW its WORKS: Vibratory Polishing Mechanism, Steel Needle Selection Guide
| Specifications | PCPL-IMG/2.5K-V | PCPL-IMG/5K-V | PCPL-IMG/8K-V | PCPL-IMG/10K-V |
|---|---|---|---|---|
| Voltage | 220 V | 220 V | 220 V | 220 / 440 V |
| Frequency | 50 HZ | 50 HZ | 50 HZ | 50 HZ |
| Motor Power | 1 HP | 2 HP | 2 HP | 3 HP |
| Speed | 0-1800 RPM | 0-1800 RPM | 0-1800 RPM | 0-1800 RPM |
| Steel Needle Dosage | 0-800 GM | 0-1000 GM | 0-1500 GM | 0-2000 GM |
| Material Weight | 2.5 KG | 5 KG | 8 KG | 10 KG |
| Rotation | FW / RW | FW / RW | FW / RW | FW / RW |
| Machine Weight | 28 KG | 42 KG | 63 KG | 80 KG |
| Machine Size (L × W × H) mm | 330 × 330 × 380 | 410 × 410 × 430 | 650 × 510 × 1030 | 520 × 520 × 680 |
| Barrel Size (D × H) mm | 250 × 165 PC | 350 × 185 PC/SS | 400 × 290 PP/SS | 450 × 290 PP/SS |

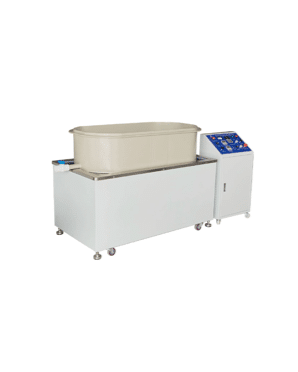

Magnetic Polishing Machine – Horizontal Industrial Grade Machines
Magnetic Polishing Machine – Horizontal Industrial Grade Machines
Horizontal Industrial Grade Machines
APPLICATION: Jewellery Polishing, Small Component Polishing, Metal Finishing, Steel Needle Polishing
FABRICATION:
HEAVY DUTY
WITH FORWARD & REVERSE ROTATION, VARIABLE SPEED CONTROL

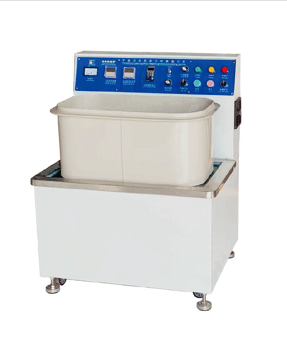

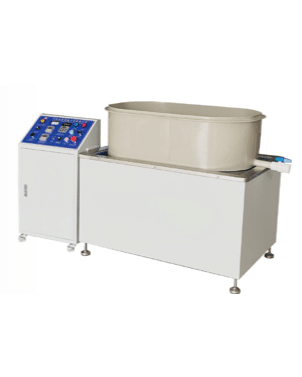

MODELS: PCPL-IMG/630x360-V, PCPL-IMG/1000x500-V, PCPL-IMG/1200x600-V, PCPL-IMG/1800x600-V
HOW its WORKS: Vibratory Polishing Mechanism, Steel Needle Selection Guide
| Specifications | PCPL-IMG/630×360-V | PCPL-IMG/1000×500-V | PCPL-IMG/1200×600-V | PCPL-IMG/1800×600-V |
|---|---|---|---|---|
| Voltage | 220 V | 440 V | 440 V | 440 V |
| Frequency | 50 HZ | 50 HZ | 50 HZ | 50 HZ |
| Motor Power | 2 HP | 3.35 HP | 5.75 HP | 11 HP |
| Speed | 0–1800 RPM | 0–1800 RPM | 0–1800 RPM | 0–1800 RPM |
| Steel Needle Dosage | 0–2000 GM | 0–8 KG | 0–12 KG | 0–20 KG |
| Material Weight | 10 KG | 20 KG | 30 KG | 60 KG |
| Rotation | FW / RW | FW / RW | FW / RW | FW / RW |
| Machine Weight | 115 KG | 198 KG | 216 KG | 360 KG |
| Machine Size (L × W × H) mm | 780 × 640 × 970 | 1200 × 660 × 680 | 1350 × 760 × 680 | 1980 × 760 × 680 |
| Barrel Size (L × W × H) mm | 630 × 360 × 300 PP | 1000 × 500 × 300 PP | 1200 × 600 × 300 PP | 1800 × 600 × 300 PP |
